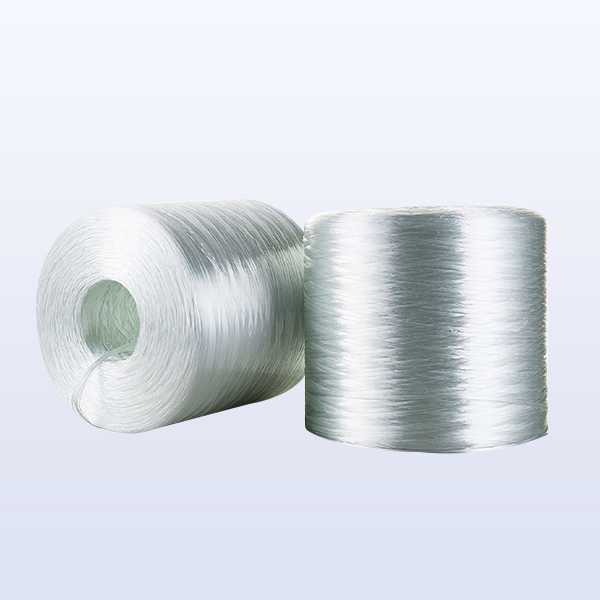

Transparent Board Yarn

Transparent Board Yarn

The yarn used in transparent panels (such as transparent fiberglass panels, skylight panels, and transparent FRP panels) is primarily fiberglass yarn. Its properties and type directly affect the transparency, strength, and durability of the panel.

Matching Resins

Unsaturated Polyester Resin

Epoxy Resin

Vinyl Resin
Description

Material properties


Cutting dispersion

The fiber bundles are not knotted or stuck together, which helps to make the surface of the product smooth and transmit light evenly, thus improving the aesthetics of the product



Resin permeability

Easy to be fully wetted and soaked by the resin to enhance the bonding between the fiber and the resin, and improve the strength and toughness of the transparent plate



Antistatic properties


Interfiber treatment provides anti-static properties, reducing dust pickup and accumulation, which is beneficial for processing and product finish






Technical Parameters


parameterP-ECR2400
Line density(Tex)2400
Tolerance(%)+-6
Moisture content(%)<=0.20
Combustible content(%)0.50+-0.20
Beam splitting rate(%)>=85%
Stiffness(mm)120+-15



Application

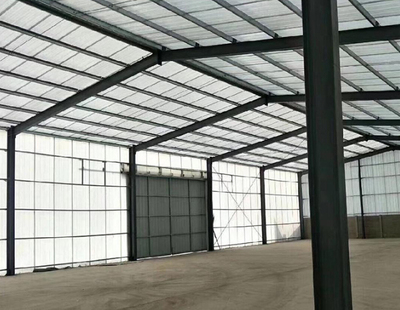

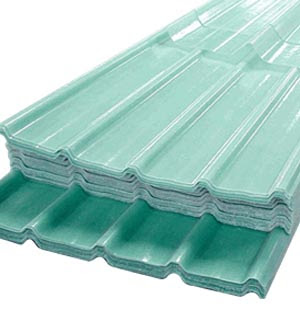

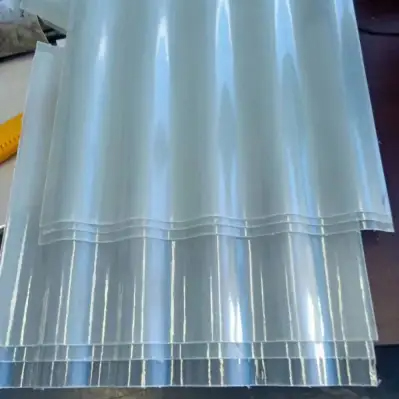

FRP采光瓦.jpg      FRP采光瓦-1.jpg      Frp采光瓦棚.jpg
