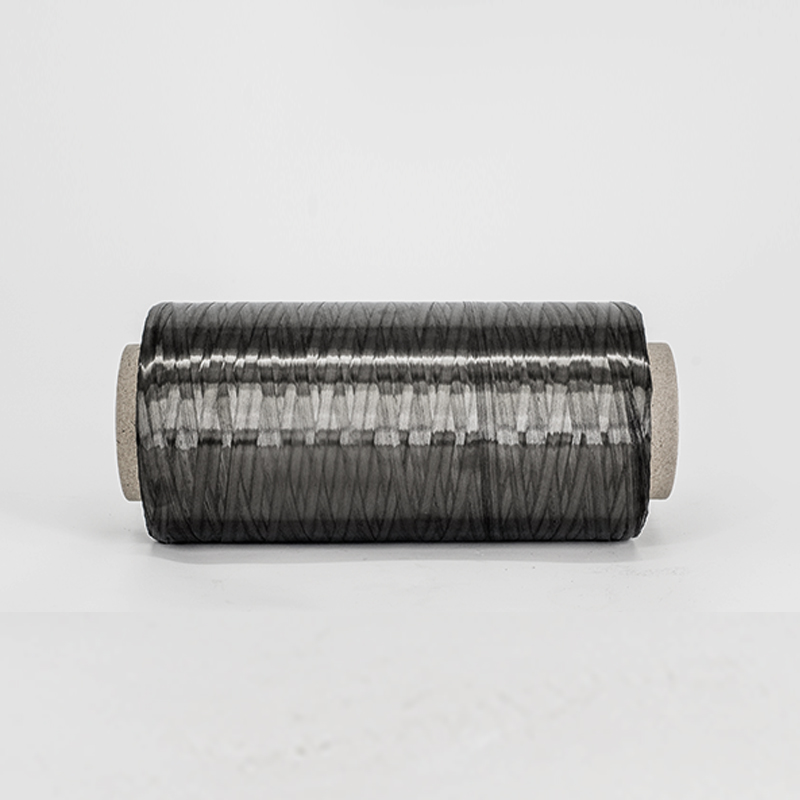

Carbon Fiber Yarn

Carbon Fiber Yarn

Carbon fiber yarn, a filament made from thousands of extremely fine carbon fiber filaments twisted or bundled together, is a core reinforcement material for high-performance composite materials. It exhibits excellent specific strength, modulus, corrosion resistance, and thermal stability, and is widely used in aerospace, automotive, wind power, sports equipment, civil engineering reinforcement, and other fields.
Description


Technical Parameters



Level StandardsTow specifications(K)Line density g/1000m

Breaking strength
MPa

Elastic modulus
GPa

Elongation at break%

Volume density
g/cm³

Carbon content%



GX400

1K68±3
≥3700
≥235
>1.6-2.0
1.77±0.03
≥93
3K
198±6≥4000≥235>1.6-2.01.77±0.03≥93
6K396±12≥4200≥235>1.6-2.01.77±0.03≥93
12K800±20>4200-4900≥235>1.6-2.01.77±0.03≥93





Application
