一．Features and main uses:

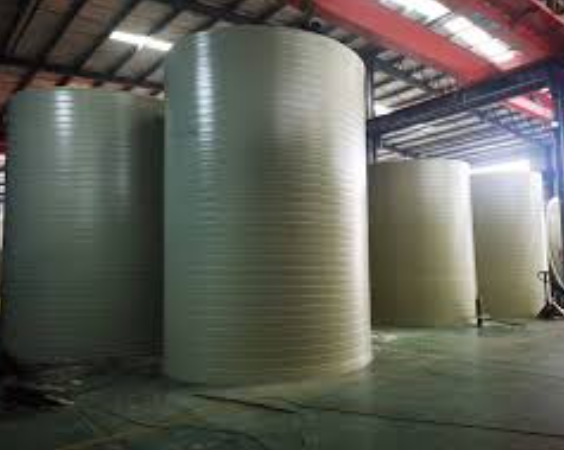

TR886 is a modified unsaturated polyester resin synthesized from phthalic anhydride, maleic anhydride, and standard diols, dissolved in styrene. It exhibits medium viscosity and reactivity, excellent mechanical properties, and a high elongation at break, making it particularly suitable for winding processes. Glass fiber reinforced fiberglass tanks and pipelines exhibit excellent strength and toughness.
二．Liquid resin technical indicators(25℃)：
Item
|
Unit
|
Test Indicators
|
Test Method
|
Appearance
|
---
|
Transparent light yellow liquid
|
GB/T8237.6.1.1
|
Viscosity |
Pa·s
|
0.38-0.55
|
GB/T 7193-2008
|
Acid value
|
mgKOH/g
|
16-24
|
GB/T 2895-2008
|
Gel time
|
Min（25℃）
|
6.5-12.5
|
GB/T 7193-2008
|
Stability
|
H（80℃）
|
≥24
|
GB/T 7193-2008
|
Note: In a 25℃ water bath, add 2ml of methyl ethyl ketone peroxide solution and 4ml of cobalt isooctanoate solution to 100g of resin.
三．Physical properties of casting (for reference only)：
Item
|
Unit
|
Test Performance
|
Test Method
|
|
|
浇铸体
|
|
Tensile Strength
|
MPa
|
≥60
|
GB/T2567-2008
|
Tensile Elastic Modulus
|
MPa
|
≥2800
|
GB/T2567-2008
|
Elongation at Break
|
%
|
≥3.0
|
GB/T2567-2008
|
Bending Strength |
MPa
|
≥95
|
GB/T2567-2008
|
Flexural Modulus
|
MPa
|
≥3500
|
GB/T2567-2008
|
Heat Deformation Temperature
|
℃
|
≥65
|
GB/T1634-2004
|
Barcol Hardness
|
---
|
≥40
|
GB/T3854-2005
|
Note:
(1) Casting sample preparation method is carried out in accordance with GB/T8237-2005; temperature is 25℃, curing system: accelerator RCA 1.0%,
curing agent M-50 1.5%.
(2) Casting post-curing treatment: room temperature × 24 hours + 60℃ × 3 hours + 80℃ × 2 hours;
四．Notes:
1. Before use, stir thoroughly in the container, or empty all the resin from the container and stir thoroughly before use.
2. Transportation must comply with Chapter 5 of the State Council's "Regulations on the Safety Management of Hazardous Chemicals," regarding
the transportation and handling of hazardous chemicals. This product should be stored in a cool, dark place below 25°C, away from ignition sources
and heat sources. The shelf life is three months when stored below 25°C.
